Belong intelligent battery charger for cleaning & sweeping machine QY500S-VC3612 36V12A 540W

Product Details:

Place of Origin:	CHINA
Brand Name:	BELONG
Certification:	ETL CE GS FCC
Model Number:	QY500S-VC3612

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Price negotiable
Packaging Details:	Carton & Pallet
Delivery Time:	Safety stock, 3 days-4 weeks
Payment Terms:	T/T

Contact Now

Detailed Product Description

Microprocessor Control:	Charging Process Fully Controlled By Microprocessor.	Intelligent:	Pre-charge, Constant Current, Constant Voltage, Automatic Power Off Once Charging Completed.
Multiple Protection:	Over Voltage, Under Voltage, Voltage-limiting, Over Current, Short-circuit, Reverse Polarity, Thermal Protection.	High Efficiency:	> 90% Conversion Efficiency, Power Factor>0.95, Efficient Environmental Protection.
Compatibility:	Compatible With Lead-acid, Gel, AGM And Lithium Batteries	Safe & Reliable:	All Aluminum Shell, Strong And Durable.
Certificates:	ETL CE GS FCC.

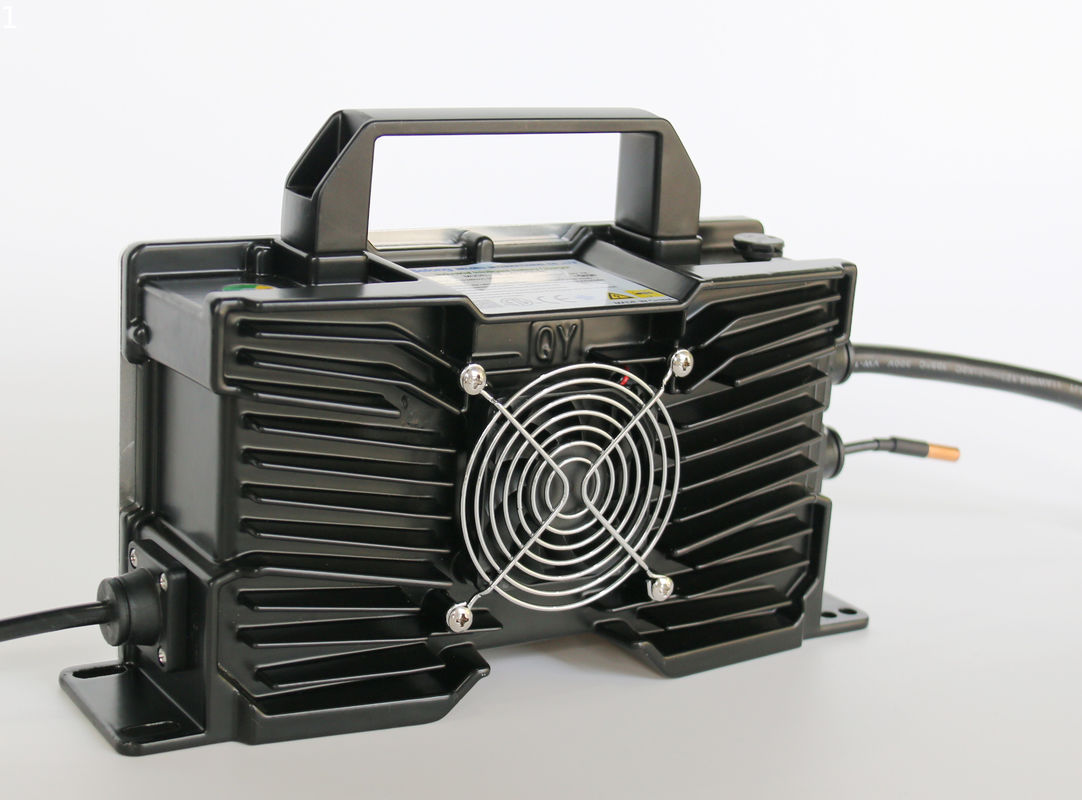

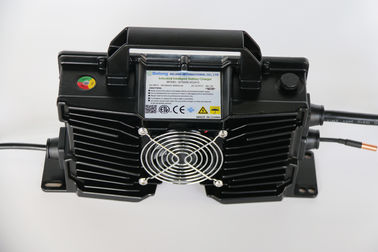

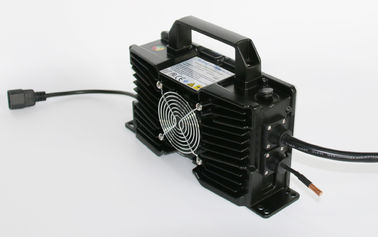

Belong intelligent battery charger for cleaning & sweeping machine

QY500S-VC3612 36V12A 540W

1. General Information

AC/DC 36V12A intelligent charger, 120&220Vac rated input voltage, 100-240Vac input voltage range, 44.1V/12A output, 540W max output power.

Protections against Over-voltage and Under-voltage on input; Over-voltage, Under-voltage and Current-Limiting on output; Overheating, Reverse Polarity and Short Circuits.

2. Specification

Max Output Power	Input Voltage	Output Voltage	Output Current
540W	100~240Vac	43.8～44.4Vdc	10A～12A

3. Electrical Characteristics

Input	Item				Technical Standard			Unit	Note
	Rated Input Voltage				120/220			Vac
	Input Voltage Range				100～240			Vac
	Input Frequency Range				47～63			Hz
	Max Input Current				≤6			A	Rated load, and min input voltage
	Input Power Factor				>0.95				Rated load
	Item				Technical Standard			Unit	Note
Output	Output Voltage				44.1V			Vdc
	Output Current Range			44.1V	10 ～ 12			A
	Voltage Precision			44.1V	±0.3			Vdc
	Output Ripple and Noise			44.1V	≤(Vo X 0.5%)Vp-p			mV
	Power-on Output Delay			44.1V	≤5			S
	Output Rise Time			44.1V	≤100			mS
	On/Off Overshoot Amplitude			44.1V	≤(Vo X 5%)Vp-p			V	Rise to 90%Vo from 10%Vo, rated load
	Recovery Time				≤200			uS
	Overall Efficiency				>90			%	Rated Vin=120/220Vac, Rated output current=12A
	Output Power Off Hold Time				≥20			mS
	TEMPCO				±3			mV/℃	Negative temperature coefficient compensation
Protection Alarm & Indicator	Item				Technical Standard			Unit	Note
	Output OVP				≤(rated Vo) x110%			V	Recover automatically after the output returns to normal
	Output CLP				≤(rated Io) x110%			A	No auto recovery, current limiting or constant power output. Output interrupts are not allowed
	Output SCP				Io= 0A			A	Auto recovery
	Input OVP				>265			Vac	Auto recovery
	Input Overvoltage Recovery				<260			Vac
	Input UVP				＜85			Vac	Auto recovery
	Input Undervoltage Recovery				>90			Vac
	DC Output Indicator (ACT)				Normal Output (LED)
					Red LED	Yellow LED	Green LED
	Standby				ON	OFF	OFF
	Less than 50% charged				Slow Flash(1/S)	OFF	OFF
	50%-75% charged				OFF	Slow Flash(1/S)	OFF
	75%-100% charged				OFF	OFF	Slow Flash(1/S)
	100% fully charged				OFF	OFF	ON
	Power Failure Indicator (ALM)				Abnormal Output (LED)
					Red LED	Yellow LED	Green LED
	Battery Failure				Fast Flash(2/S)	OFF	OFF
	OTP				OFF	Fast Flash(2/S)	OFF
	Inner Failure				OFF	OFF	Fast Flash(2/S)
Safety Requirement	Item				Test Condition			Note
	VISO		In-Out		2500Vac/5mA/1min			No flashover or breakdown (Remove lightning protection devices in testing.)
			In-GND		2500Vac/5mA/1min

	RISO		In-Out		≥100MΩ@500Vdc			Remove lightning protection devices in testing.
			In-GND		≥100MΩ@500Vdc
			Out-GND		≥100MΩ@500Vdc
	LC		In-GND		≤3.5mA			Vin=264Vac/50Hz
	RG		--		≤0.1Ω
	Temp Rise		Overall unit		Key components: IEC60950/GB4943; Others: within its own normal operating temperature range			Full load, and at the worst ambient temperature
	Flame retardancy		PCB		GB4943.1/ IEC60950-1 V-0
			Other isolation material		GB4943.1/ IEC60950-1 V-1
EMC	EMI		(CE)		EN55014-1:2017
			(RE)		EN55014-1:2017/CISPR22 CLASS B
	(Harmonic Current)				EN61000-3-2: 2014
	EMS	(ESD)			EN61000-4-2:2009
		(RS)			EN61000-4-3:2010
		(EFT)			EN61000-4-4:2012
		(SURGE)			EN61000-4-5:2014
		(CS)			EN61000-4-6:2014
		(MS)			EN61000-4-8:2010
		(DIP)			EN61000-4-11:2004

4. Environmental Condition

Item	Technical Standard	Unit	Note
Storage Temp	-40～+85	℃	Storage for 24h, recover for 2h at AT
Operation Temp	-25～+45	℃
RH	5～90	%	Non-condensing
Heat Dissipation	Intelligent air cooling
Altitude	≤3000	m
Pressure	70～106	kPa
MTBF	≥200000	h	Bellcore TR-332(Ta=25°C)
Vibration	Random vibration: 5-500Hz in 3 mutually perpendicular directions, 1m²/s³ at 5-10Hz, 3 m²/s³ at 10-200Hz, and 1m²/s³at 200-500Hz, 20min per direction		Normal working after testing.
Vibration	Working vibration Frequency: 5-9Hz, 9-200Hz Amplitude: 1.5mm Acceleration: 5m/s² Time: 5-200Hz-5Hz at each axis, 5 cycles in total		Normal working during testing.
Shock	Shock Waveform: half sinusoid Peak acceleration: 60m/s² Cycle: 11ms Times: ±3 times at each axis, 18 times in total		Normal working during testing.
